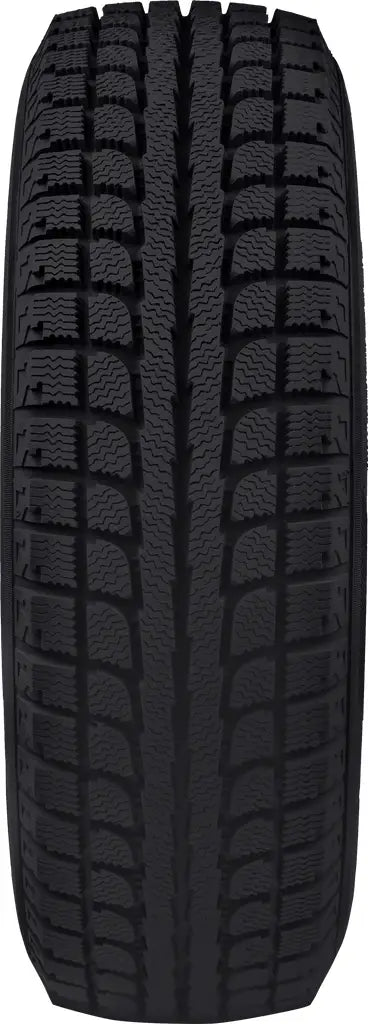

Antares Grip 20 225/60R17 99T
SKU: AT AH4095 | Antares | Grip 20
More Antares Grip 20 can be ordered from different warehouses. Contact us for more detail.
How to Read Tire Size Information
Read metric sizes: 205/55R16 91V
Section Width : 205
The width of this tire size is 205mm wide. The first number in a metric tire size is the section width of the tire.
Aspect Ratio : 55
The aspect ratio on this tire size is 55. The sidewall height of a metric tire is 50% of the section width, which is known as the aspect ratio.
Tire Construction : R
The tire size is indicated by the letter R, which stands for radial construction. This construction method is widely used in the tire industry.
Wheel Diameter : 16
The wheel diameter of this tire size is 16 inches. The tire is designed to be mounted on an 16" wheel diameter.
Load Index : 91
The load index of this tire is 91 - 1356 lbs. It indicates the maximum weight the tire can handle. Higher numbers correspond to greater weight capacity.
Speed Rating : V
This tire size has a speed rating of V - 149 mph 240km/h. The letter 'V' indicates the maximum speed the tire can sustain.
Read inch sizes: 33X12.50R15LT C/6
Diameter : 33
The tire size has a diameter of 35 inches. The first number in a high flotation tire size represents the overall diameter.
Section Width : 12.50
The width of this tire size is 12.5 inches. The width of the tire in inches is indicated by the second number in a high flotation tire size.
Tire Construction : R
The tire construction of this tire size is R for radial. This letter is for how the tire is constructed. Radial is the standard construction method for almost all tires.
Wheel Diameter : 15
The wheel diameter of this tire size is 15 inches. This tire is specifically designed for mounting on a 15 inch wheel diameter.
Tire Class : LT
This tire size is classified as 'LT' which designates it as a Light Truck tire.
Load Range : E
Tire load range of this tire size is 'C' which means it has a 10 ply tread. Other load ranges include B: 4 ply, C: 6 ply and D: 8 ply.
Load Ratings Chart
Load Index |
Max lbs. | Load Index |
Max lbs. |
---|---|---|---|
71 | 761 | 86 | 1168 |
72 | 783 | 87 | 1201 |
73 | 805 | 88 | 1235 |
74 | 827 | 89 | 1279 |
75 | 853 | 90 | 1323 |
76 | 882 | 91 | 1356 |
77 | 908 | 92 | 1389 |
78 | 937 | 93 | 1433 |
79 | 963 | 94 | 1477 |
80 | 992 | 95 | 1521 |
81 | 1019 | 96 | 1565 |
82 | 1047 | 97 | 1609 |
83 | 1074 | 98 | 1653 |
84 | 1102 | 99 | 1709 |
85 | 1135 | 100 | 1764 |
Load Index |
Max lbs. | Load Index |
Max lbs. |
---|---|---|---|
101 | 1819 | 116 | 2756 |
102 | 1874 | 117 | 2833 |
103 | 1929 | 118 | 2910 |
104 | 1984 | 119 | 2998 |
105 | 2039 | 120 | 3086 |
106 | 2094 | 121 | 3197 |
107 | 2149 | 122 | 3307 |
108 | 2205 | 123 | 3417 |
109 | 2271 | 124 | 3527 |
110 | 2337 | 125 | 3638 |
111 | 2403 | 126 | 3748 |
112 | 2469 | 127 | 3858 |
113 | 2535 | 128 | 3968 |
114 | 2601 | 129 | 4079 |
115 | 2679 | 130 | 4189 |
LT Load Ranges
Load Range | Ply Rating | Max Load Pressure |
---|---|---|
B | 4 | 35 psi |
C | 6 | 50 psi |
D | 8 | 65 psi |
E | 10 | 80 psi |
F | 12 | 95 psi |
Passenger Load Ranges
Load Range | Symbol | Max Load Pressure |
---|---|---|
Light Load | LL | 35 psi |
Standard Load | SL | 35/44 psi |
Extra Load | XL | 41/50 psi |
Speed Ratings
Letter | Max Speed |
Vehicle Types |
---|---|---|
L | 75 mph / 120 km/h | Off-Road Tires |
M | 81 mph / 130 km/h | Spares |
N | 87 mph / 140km/h | Winter Tires |
P | 93 mph / 150 km/h | Winter Tires |
Q | 99 mph / 160 km/h | Light Truck |
R | 106 mph / 170 km/h | Light Truck |
S | 112 mph / 180 km/h | Light Truck |
T | 118 mph / 190 km/h | Sedans |
U | 124 mph / 200 km/h | Sedans |
H | 130 mph / 210 km/h | Sports Cars |
V | 149 mph / 240 km/h | Sports Cars |
W | 168 mph / 270 km/h | High-Performance Cars |
Y | 186 mph / 300 km/h | High-Performance Cars |
